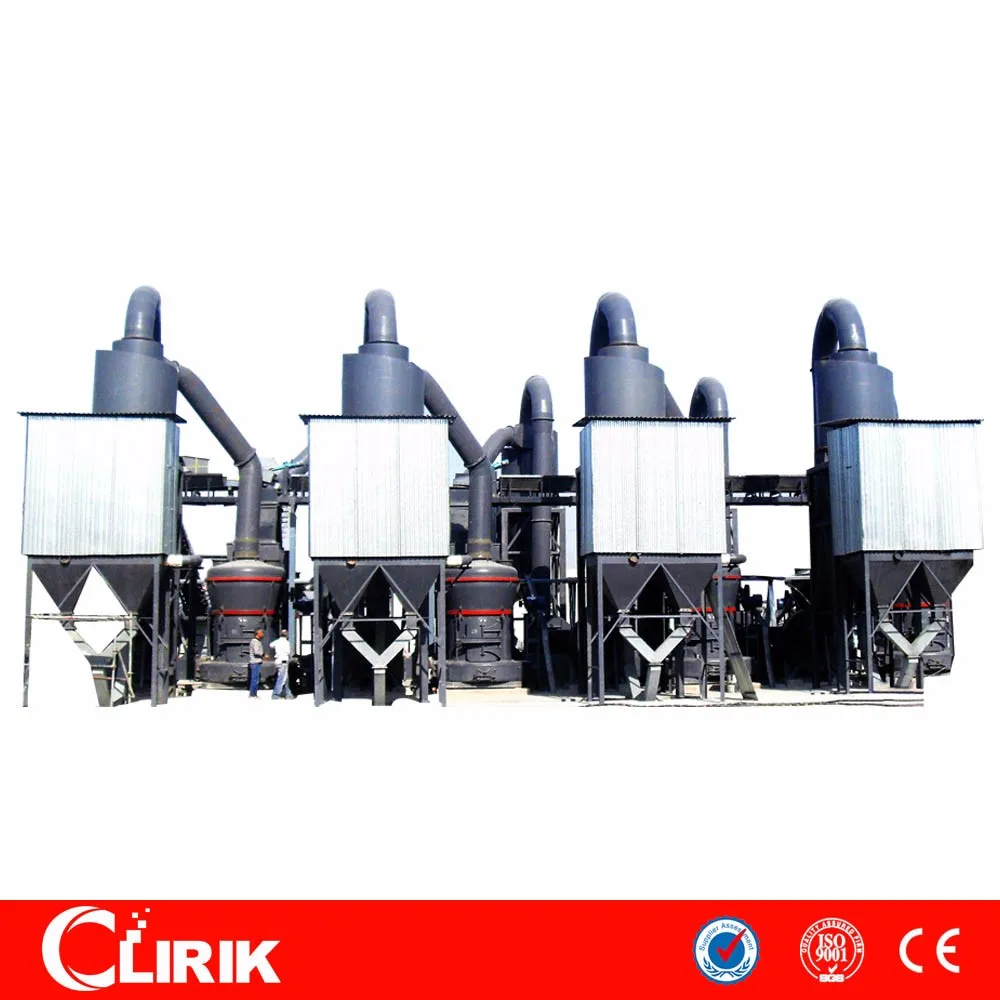

Environmental Raymond mill plant, kaolin Raymond mill with high capacity

  • 1 - 4 Sets
    $100,000.00
  • >=5 Sets
    $20,000.00
Power(W):
18.5-150kw
Model Number:
YGM7815 MTM1600
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 5 Sets)
Customized packaging (Min. Order: 5 Sets)

More

Graphic customization (Min. Order: 5 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Place of Origin:
Shanghai, China
Brand Name:
Clirik
Weight:
34t~60T
Certification:
ISO9001:2008
Type:
Raymond Mill
Motor Type:
AC Motor
Capacity(t/h):
0.5-12t/h
Dimension(L*W*H):
Customized
Applicable Industries:
Construction works , Energy & Mining
Application:
Construction
Name:
Raymond mill
Color:
Iron Grey
The Machines classification:
Granding Mill Machine
Product name:
Raymond mill
Installation:
Engineer's Guide
Spare parts supplying:
Lifelong Provide
After sale service:
Engineer Avalable
Feeding size:
25mm
Test&Installation:
Assisted
Supply Ability
Supply Ability:
25 Set/Sets per Week
Packaging & Delivery
Packaging Details
container
Port
Shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Product Description

Overview of Raymond Mill

Raymond mill, also known as Raymond Grinder or Pendulum Grinder, is designed by CLIRIK Machinery with Germany technology. The Raymond mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.

Main Advantages of Raymond Mill

1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system

2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.

3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.

Working Principle of Raymond Mill

The standard configuration of YGM raymond grinder machine consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

Certifications

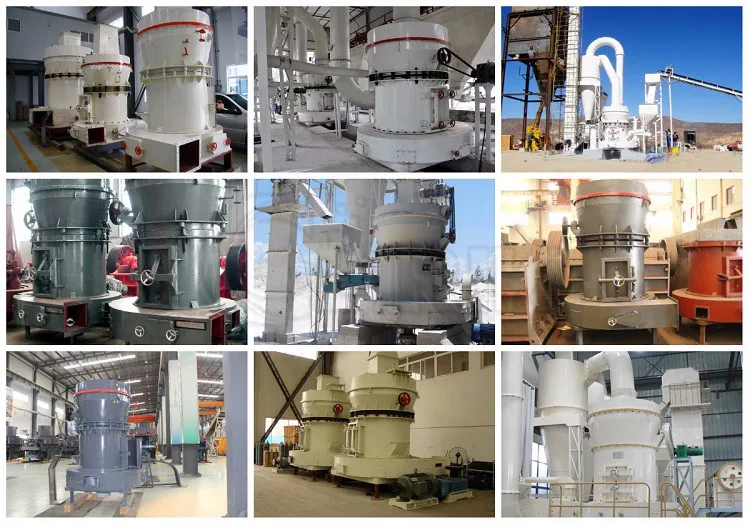

Detailed Images

YGM4121 Raymond Mill

Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The raymond mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Output:15 - 425 mesh

YGM9517 Raymond Mill

Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The raymond mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Output:30 - 425 mesh

YGM8314 Raymond Mill

Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The raymond mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Output:30 - 425 mesh

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
